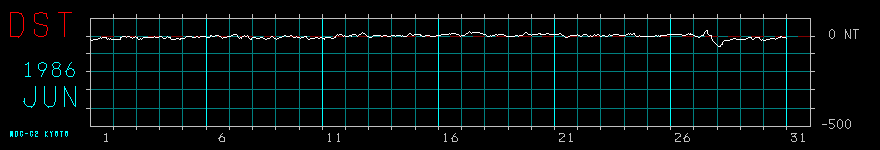

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL)         WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY

     JUNE 1986
                                                  Unit=nT, Time=number of the hour in UT day
      1   2   3   4   5   6   7   8    9  10  11  12  13  14  15  16   17  18  19  20  21  22  23  24
DAY
 1  -20 -25 -23 -18 -17 -19 -20 -17  -15 -13 -11 -12  -9  -9  -6  -8  -11 -17 -15 -18 -16 -18 -19 -22
 2  -19 -18 -22 -19 -19 -21 -17 -11   -6  -5  -4  -4  -4  -6  -4  -5   -4  -6  -9 -12  -7  -6  -5  -8
 3  -10 -20 -20 -16 -18 -14 -11  -7   -7  -6  -9 -10 -11 -10  -9  -9   -9  -7  -5  -6  -8  -7  -6  -4
 4   -4  -4  -8 -13 -16 -15 -10  -4   -7  -6 -11 -21 -21 -19 -19 -18  -16 -15 -16 -18 -17 -15 -13 -12
 5  -13 -12  -6  -3  -5  -5  -4  -2   -4  -8  -7  -8  -6  -4  -4  -6   -7  -5  -3  -3  -3  -5  -4  -6

 6   -8  -9  -6  -3   4   5   0   0   -1   1   2   2   2  -1  -3  -8  -12 -11  -9 -10  -6  -3   0   0
 7    0   1   4   8  11  11  10   1   -6 -12  -7  -8 -12  -5  -5   1    0   0   2  -5 -12 -19 -17  -9
 8   -8 -10 -11 -15 -13 -13 -13 -10  -11 -11 -12 -15 -18 -18 -16 -15  -15 -10  -7  -5  -3  -7 -12 -14
 9  -19 -16 -15  -9  -7  -6  -3   0    3   2  -2  -5  -5  -2   2   1   -5  -8  -8  -6  -5  -8 -10 -11
10  -14 -13 -11 -10  -8  -2  -2  -5  -13 -22 -18 -12 -15 -14 -16 -15  -11 -10 -10 -12 -12  -8 -11 -13

11  -15 -17 -11 -10 -10  -9  -8  -9  -10 -12 -14 -13 -10  -8   3   7    4   6   8   7   5  -1   2  -2
12   -4  -3  -3   3   3  -1   6   9    6   6   4   0   3   8  10  11   15  18  15  12   9   5   0  -5
13   -9 -11  -8  -3   2   2   1   1    5   4   4   4  -2  -1   4   4    5   5   0  -4  -2  -4  -4   2
14    5   5   2  -1   1   3   1   2    2   0   1  -1  -3  -4  -2   3    7  13  13   8   3   4   6   6
15   10  11   6   6   7   5   1   0   -3   0   1   1   4   2   2  -1   -2  -1  -1  -2   0   2   1   2

16    2   4   6   8   9  11  11   9    8  11  12  10  11  13  14  16   15  12  11   9   7   5  -1   3
17    4   4   5   6  14  16  18  24   22  16  22  21  20  18  18  18   18  17  15  13  12  13  11  10
18   10   4  -2  -4   0   2  -1   1    3   4   8   8   5   8   8  10    7   6   6   4   2  -2  -2  -1
19   -1  -3  -2  -2   0   0   0   1    3   1   0   1   1   2   4   9   15  17  17  15   7   7   6   4
20    7   8   7   7   8  10  13  13   13  10  11   8   6   8  11  14   16  13  10   7  10  10  11   7

21    7   7   6   8  14  13   9   5    3  -3  -7  -8  -8  -4   0   3    4   5   5   1   1   2   5   6
22    2   2   0   0   5   8   7   8    8   3   0  -1   1  -1   0   4    6   5   4   7   6   3   0  -1
23   -1   1   2   2  -1  -2   0   4    6   5   4   5   8   9  10   9   10   7   3   2   2   2   1   1
24    4   6   7  13  10  12  13  10   10  14  15   3  -2  -1  -2   1    0  -4  -5  -3  -2  -4  -3  -3
25   -3  -2  -3  -4  -3   0   0   2    1   0   1   0   1  -1   1   4    3   5   5   5   6   6   8   9

26    8   8   8   8  11  11  10   9    8   8   7   4   1   1   4   7   11  12  11  12  11  11   8   4
27    2   0  -2  -4  -6  -7  -4   1    3   2  14  26  31  31  10   4    4   1 -21 -30 -38 -41 -48 -53
28  -60 -56 -52 -57 -49 -45 -31 -25  -23 -23 -25 -26 -24 -21 -21 -17  -16 -14 -13 -17 -19 -19 -20 -17
29  -18 -21 -22 -20 -18 -16 -12 -11   -9 -10  -8 -10 -17 -19 -15 -11  -11  -9  -9 -11 -18 -23 -21 -23
30  -25 -23 -20 -20 -19 -18 -15 -13  -14 -16 -16 -17 -15 -13  -9  -7   -7  -4  -5  -8  -7  -6  -6 -14
