Experiment: PHOTON
GAMMA-SPECTROMETER
ELEMENTAL COMPOSITION OF MARTIAN ROCKS
Main scientific objectives:
geochemical mapping of the elemental composition of Martian surface rocks with high spatial resolution and high accuracy;
determination of the abundance of natural radioactive elements ( K, U, Th ), basic rock-forming elements ( H, C, Mg, Al, Si, S, Cl, Ca, Ti, Fe).
Method of measurements is based on recording gamma-rays from natural radionuclides in rocks and gamma-rays generated by nuclear interactions of cosmic rays with elements of Martian surface rocks.

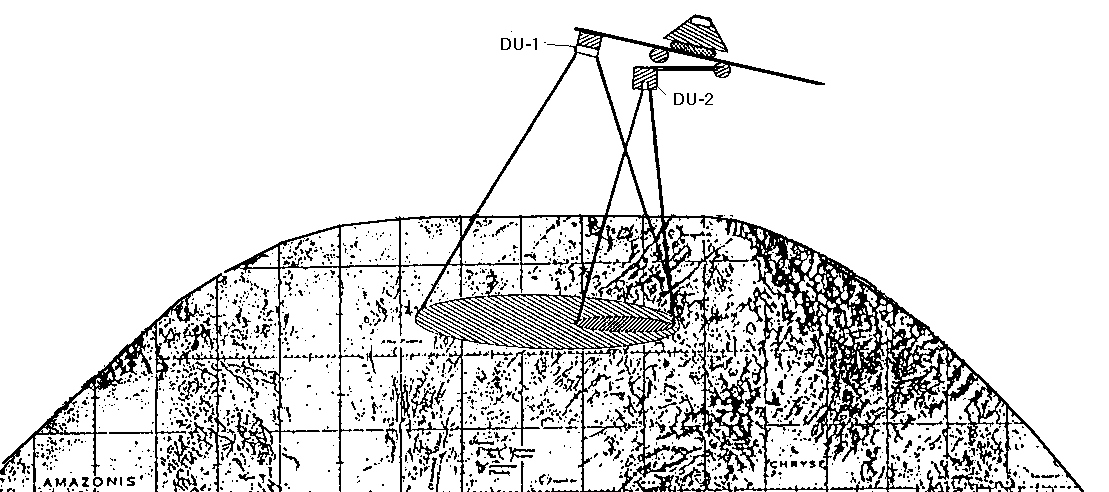

Instrument consists of:
detection unit (BD-1) using a CsI crystal, with a bismuth germanate collimator. It is installed on platform PAIS. The collimator provides high spatial resolution measurement of element abundance;
omnidirectional detection unit (BD-2) with a large CsI crystal (785 cm3). It is placed on a solar panel. The use of a large volume crystal permits the abundance of rock-forming elements to be determined with a high accuracy;
amplitude analyzer of counts with 4096 channels. It records gamma spectra from BD-1 and BD-2 units as well as spectra from the PGS detection unit with a superpure germanium crystal.
Main characteristics:
|
| |
parameter to be measured | energy spectrum of gamma-rays |
Energy range | 0.2 to 10 MeV |
Energy resolution at E = 0.661 MeV: | 7.5% |
Data capacity | 3 Mbit/revolution |
Total mass | 20kg |
Cooperation: Russia
Contact persons: | Y.Surkov (PI), geohi@sovam.com
|
|
